QLab Regular Climatic Chamber (RTC) comes in a variety of sizes and performance configurations. Each chamber offers an ideal solution for any industry or product. Choose a climatic chamber that fits your performance, testing, laboratory, and company needs today.

With more standard features and better performance capabilities than comparable chamber in the Indonesian market, QL-Series, a prominent series chamber from QLab improve the product through a dynamic testing solution.

 We are concerned with using the best air handling system for excellent distribution performance, have an internal circulation humidification system, electric humidity-temperature sensors, and data control system software which comply with 21 CFR part 11 so that all requirements of documentation and data archiving are perfectly fulfilled.

RTC General Features


•   RTC - 5 model sizes:

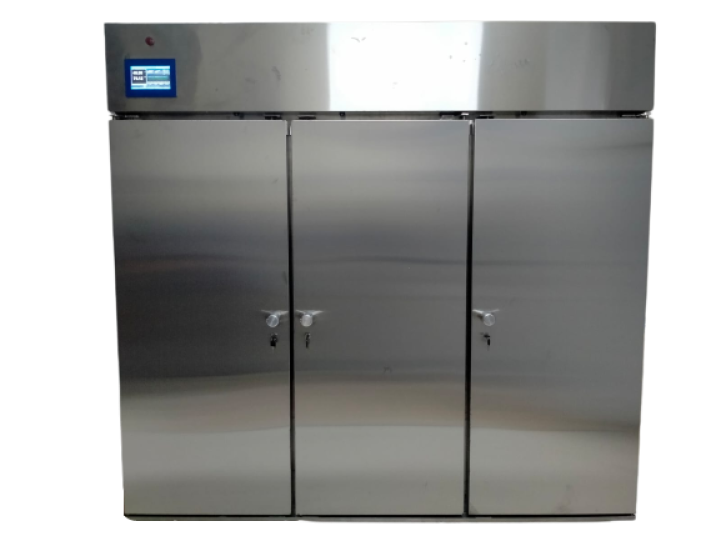

QL 2000.3 (2200 L)

QL 1400.3 (1400 L)

QL   800.3 (850 L)

QL   600.3 (650 L)

QL   300.3 (390 L)


•     Temperature/humidity range: +20°C - 50°C (± 2°C)/ 40% RH - 90% RH (± 5%rH) or other applications

•     Display Color HMI Interface, 7inch (155 x 85 mm) Advanced touchscreen panel

•     Material: Stainless steel SUS 304

•     The controller and software are compliant with FDA 21 CFR part 11 guidelines for data logging.

•     More Alarm Notification

  • General Alarm
  • Temperature Safety Device
  • Low water protection for humidity
  • Probe Fault
  • Feeding Fault

•   More Event Records

  • User login
  • Operating status of main components: cooler,main power, etc
  • Door Open/Close

•   Central Alarm System for alerting: when the Safety device is working, humidity/temperature value is out of range, and low water feeding failure

•       Networkable Monitoring via RJ45 communications with all QLab Chamber products
